Details

  • Year:1976
  • Stock #:13690T
  • Model:
  • Status:

Specification

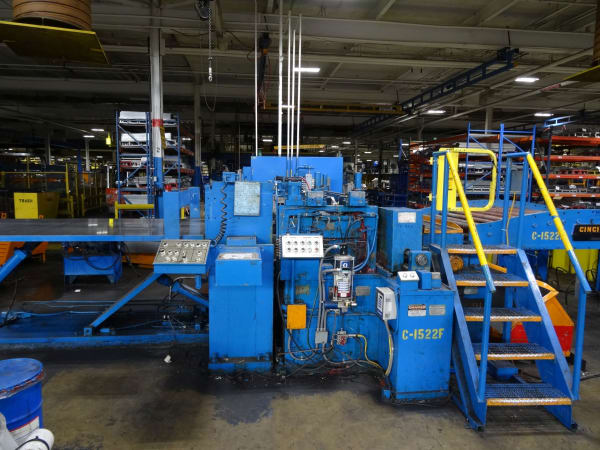

CINCINNATI 20,000LB X 60" X .075" CTL LINE, STOCK# 13690T

New 1976

THICKNESS   .018” - .075”, 50,000 PSI STEEL

MAX COIL WEIGHT     20,000 LBS

MIN COIL WIDTH 12”

MAX COIL WIDTH    60"

INSIDE DIAMETER OF COIL    16" - 24"

MAX COIL O.D.    60"

LINE DIRECTION    LEFT TO RIGHT

LINE SPEED    34 -200 FPM

SHEET LENGTH    6" - 144"

EQUIPPED WITH:

3 ARM TURNSTYLE, MDL#CLC-20, S/N#91071

ENTRY COIL CAR MODEL # BGU-40

FLOOR MOUNTED

HYD LIFT

COIL REEL, MDL#CPR 60 20, S/N#91072

SINGLE MANDREL TYPE

POWERED EXPANSION

MOTORIZED

HOLD DOWN W/POWERED SNUBBER

PEELER/THREADING TABLE, MDL#CPP 60-.075”, S/N#91073

5 ROLL STRAIGHTENER W/ BACK UP ROLLS, MDL# R.S. 60, S/N#91075

3” DIA ROLLS

30 HP MOTOR

DOUBLE EDGE TRIMMER W/ SCRAP CHOPPER MDL#D.H.E.T. 60-.075

HUMP TABLE MDL#HT 60-.075, 91079

SHEAR MDL#H.S.S.60-.075, S/N#91080

STACKER/CONVEYOR 6”-144”, MDL#M.M.S.O. 60-144, S/N#91081

SIDE EXIT
