Details

  • Year:1995
  • Stock #:13937J
  • Model:
  • Status:

Specification

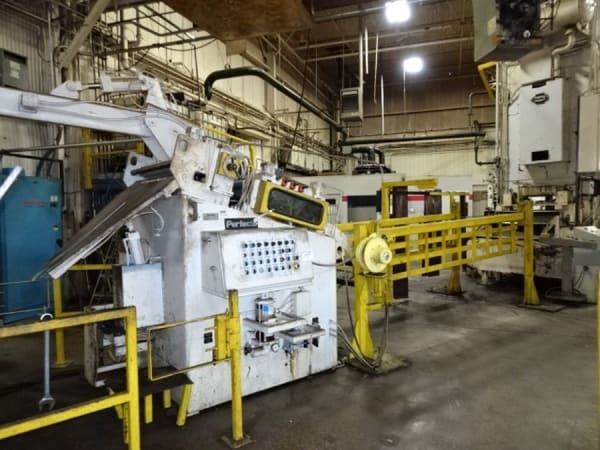

PERFECTO 36" x .250  POWERED STOCK STRAIGHTENER, STOCK# 13937J
MDL# S283607
SERIAL #202052
Material: Cold Rolled Steel - 50,000 PSI Yield
Max. Thickness x Width: .250" x 6"
Max. Width x Thickness: 36" x .120"
Min. Thickness: .020"
Min. Width: 6"
2.75" Diameter Rolls
7 Straightening Rolls
Entry/Exit Pinch Rolls
Line Speed: 960 IPM
Horsepower:   15
Line Voltage: 460/3/60
Line Direction: * Left to Right
16’ LR x 94” FB x 114” Tall
EQUIPPED W/
Automatic Lubrication
Backed Up Straightening Rolls
Peeler Blade & Table
Digital Read-Outs for penetration rolls
Coil Restrictor Arm-Driven
Flattener
1)           Digital read-outs manufactured by Siko Products
2)           Allen-Bradley Drive
3)           Manual Stock Guides
4)           Manual Head Adjustment
16’ LR x 94” FB x 114” TALL
FOB,North Adams, Mi
