Details

  • Year:
  • Stock #:13928T
  • Model:C1-15(2)
  • Status:

Specification

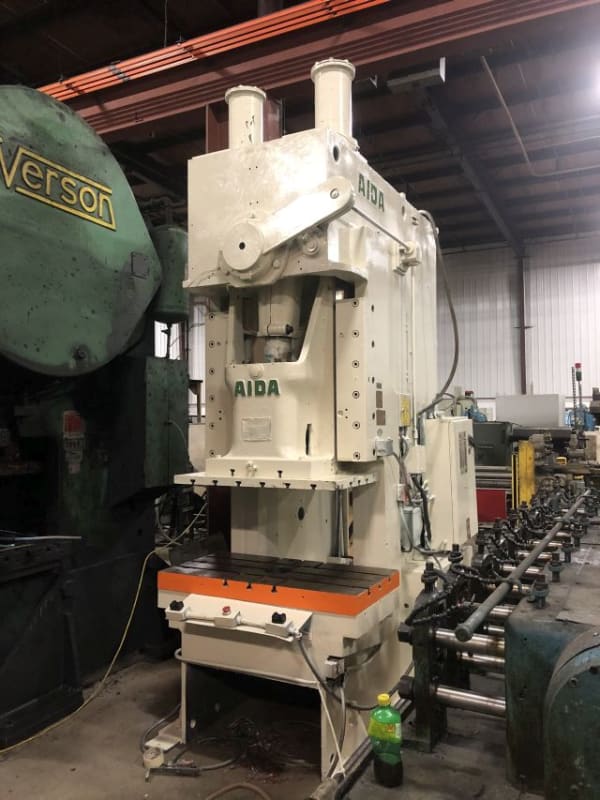

AIDA 165 TON OBI PUNCH PRESS, STOCK# 13928T

MODEL C1-15(2)
STROKE  7.8
SLIDE ADJ 3.3
SHUT HEIGHT 15.7"
AREA OF BED 48.8"LR X 24.8"FB
BOLSTER THICKNESS 3.5
AREA OF SLIDE 26.3"LR X 19.6"FB
OPENING THRU BACK 26.5"
FLOOR TO TOP OF BED 35.5"
SPM APPROX 45

EQUIPPED WITH: AIR CLUTCH & BRAKE AIR COUNTERBALANCES BACK GEARED TYPE FREE STANDING CONTROL WITH DUAL PALM BUTTONS PUSH BUTTONS FOR START/STOP KEY SELECTOR - SWITCH FOR INCH-OFF-SINGLE-CONTINUOUS ONE SHOT LUBE KNOCKOUT SLOT IN SLIDE RAM PLATE 40"LR X 23.5"FB X 2"T APPROX WEIGHT 34,000 LBS
