Details

  • Year:
  • Stock #:13964J
  • Model:75 TON OBI
  • Status:

Specification

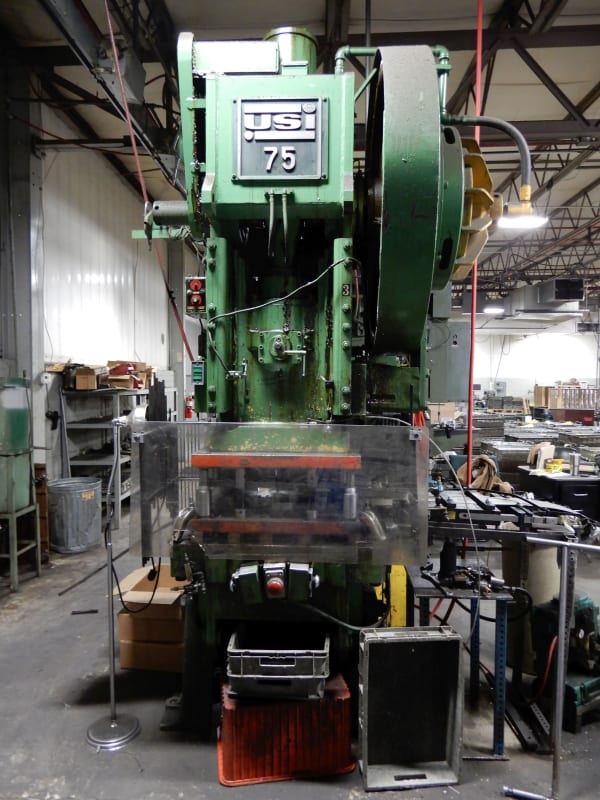

CLEARING 75 TON OBI PRESS, STOCK# 13964J


MODEL....................... 75 TON O.B.I.
SERIAL NUMBER............... 54-7054
TONNAGE..................... 75 TONS
STROKE...................... 4"
SHUT HEIGHT................. 11-1/2"
ADJUSTMENT.................. 3"
STROKES PER MIN............. 40-80
WIDTH OF OPENING IN BACK.... 20 3/4"
THROAT DEPTH................ 13"
BED AREA.................... 36" X 25"

SLIDE AREA                    24” X 18”
FLOOR TO TOP OF BED......... 34"
BOLSTER PLATE............... 36" X 25" X 3"
WEIGHT (APPROX)............. 15,000 LBS.
DIMENSIONS................ 69" X 66" X 129" H

EQUIPPED WITH:
SINGLE GEARED PRESS WITH FRICTION CLUTCH
DUAL PALM BUTTONS
BOX TYPE SLIDE
BARREL-TYPE SLIDE ADJUSTMENT
