Details

  • Year:2007
  • Stock #:13968J
  • Model:E2W200
  • Status:

Specification

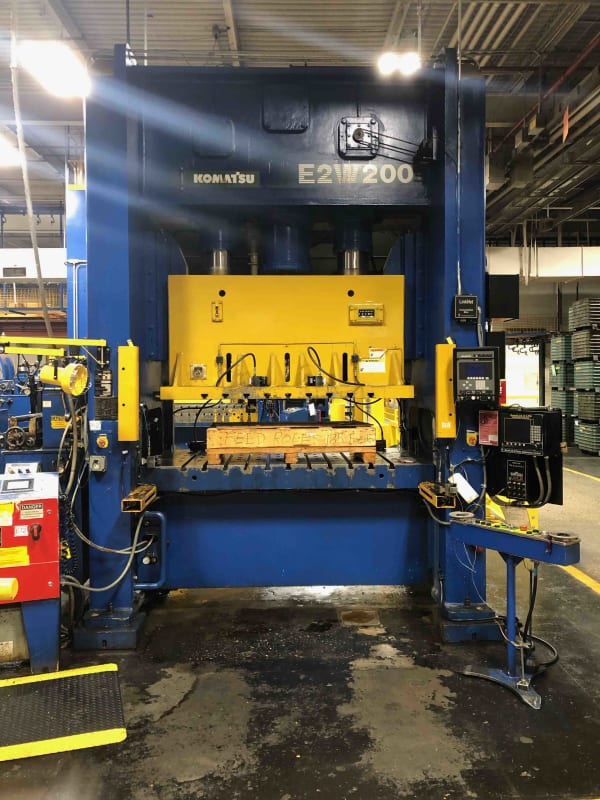

KOMATSU 220 TON STRAIGHT SIDE PRESS, STOCK# 13968J
PRELIMINARY SPECIFICATIONS


KOMATSU STRAIGHT SIDE PRESS
MODEL: E2W200
S/N: 10167
YEAR: 2007
220 TON CAPACITY (2000 kN)
5.90" STROKE (150 mm)
19.68" DIE HEIGHT (S.D.A.U.) (550 mm) BETWEEN BOLSTER & SLIDE
4.72" SLIDE ADJUSTMENT  (120 mm)
72.83" LR X 42.99" FB SLIDE AREA (1850 mm X 1092 mm)
84.64" LR X 42.99" FB BOLSTER AREA (2150 mm X 1092 mm)
35-70 SPM VARIABLE

EQUIPPED WITH:
KOMATSU PRESS CONTROL
OMNILINK II PRESS AUTOMATION CONTROL
LINK DIE PROTECTION & PROCESS MONITOR MODEL 5123
SHADOW 8 WINTRISS LIGHT CURTAINS FRONT & BACK SIDES OF PRESS
T-STAND OPERATOR PRESS CONTROLS
LINKNET CONNECTION BOX
34" WINDOWS
7" THICKNESS T-SLOTTED BOLSTER
T-SLOTTED SLIDE BOLSTER
LUBE SYSTEM
VIBRATION ISOLATOR PRESS PADS

CAME OUT OF RUNNING SERVICE, WELL MAINTAINED!
AVAILABLE FOR INSPECTION, CALL FOR APPOINTMENT!

Specification Subject To Verification: Subject To Prior Sale & Price Change!

We encourage your personal inspection of this machine, available immediately!

Shipping Terms: As Is Where Is
