Bending & Forming Equipment /
Stock # 13865T
Details
- Year:
- Stock #:13865T
- Model:#2
- Status:
Specification

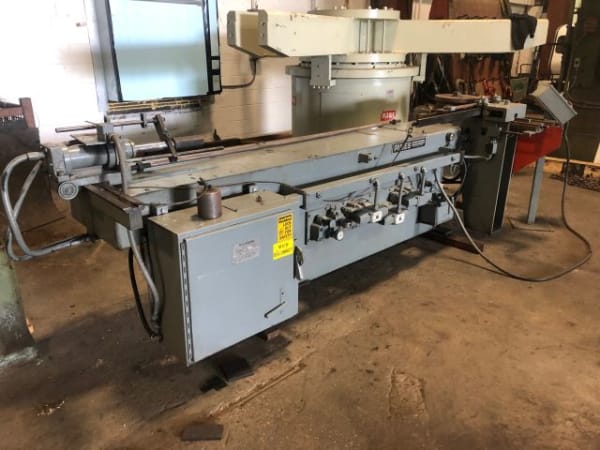

PINES #2 BENDER, STOCK# 13865T
MDL# 2
S/N#11235-76236
Average maximum bending arm speed ……… 11 rpm
Standard operating pressure ……… 2,000 PSI ………
Bending capacities:
I.P.S. extra heavy pipe ……… 2"
Non-ferrous tubing Y.P. to 25,000 psi ……… 3 1/2" o.d. x .120" wall
Steel tubing Y.P. to 40,000 psi ……… 3 1/2" o.d. x .083" wall
Stainless steel tubing Y.P. to 60,000 psi ……… 3" o.d. x 065" wall
Steel bar round Y.P. to 40,000 psi ……… 1 7/8" dia.
Steel bar square Y.P. to 40,000 psi ……… 1-11/16"
Angle bar W.P. to 40,000 psi ……… 3" x 3" x 5/16"
Maximum bend angle plus overbend for springback ……… 180 degrees
Bend angle accuracy ……… /- 1/4 degree
Motor ……… 20 HP
Dimensions ……… 156" x 58" x 43" high
Weight ……… 4,500 lbs.
Counter-Clockwise Rotation
Mandrel extractor
8 station turret degree of bend
Bijur auto lube
Motor and controls
