Details

  • Year:1999
  • Stock #:13904T
  • Model:C-150
  • Status:

Specification

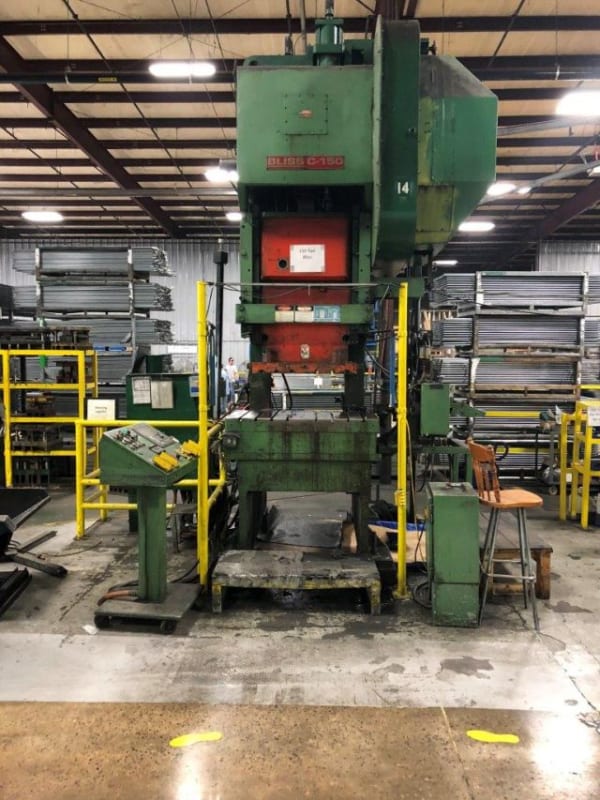

BLISS 150 TON OBI PRESS, STOCK# 13904T
MODEL #C-150
CAPACITY 150 TONS

S/N# H71866
STROKE 8"
MAX SHUT HEIGHT TO BED 26" SDAU
BED AREA 50" RL X 30" FB
SPEED 40 SPM
RAM ADJUSTMENT 4.5" MOTORIZED
RAM AREA 34" RL X 24" FB
BOLSTER PLATE 4.25" H X 50" RL X 30" FB

BED SPACER PLATE 49”LR X 30”FB X 7”T
DIST UPRIGHTS 28”
CLUTCH BLISS AIR CLUTCH / BRAKE COMBINATION
APPROX WEIGHT 55,000 LBS
EQUIPPED WITH DUAL AIR COUNTERBALANCES
FLOOR STANDING

BACK GEAR DESIGN
