Presses (Stamping) /
Stock # 12810T
Details
- Year:2002
- Stock #:12810T
- Model:
- Status:
Specification

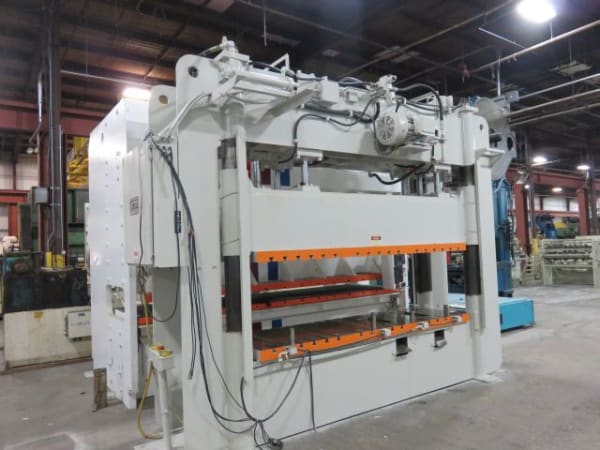

BECKWOOD 230 TON HYD PRESS
STK# 12810T S/N 29552 YEAR: 2002
CAPACITY: 230 TON @ 3000 PSI
STROKE: 25"
DAYLIGHT: 40"
SPEED
FAST APPROACH: 200 IPM
PRESSING SPEED: 37 IPM
RETURN SPEED: 225 IPM
BED AREA: 120" LR X 36" FB
RAM AREA: 120" LR X 36" FB
MOTOR: 30 HP
OAD: 150" T X 176" LR X 52" FB
APPROX WEIGHT: 50,000 LBS
EQUIPPED WITH:
LIGHT CURTAINS
PLC CONTROL
TEMPORARY SPECIFICATION SUBJECT TO REVISIONS.
PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED.
STK# 12810T S/N 29552 YEAR: 2002
CAPACITY: 230 TON @ 3000 PSI
STROKE: 25"
DAYLIGHT: 40"
SPEED
FAST APPROACH: 200 IPM
PRESSING SPEED: 37 IPM
RETURN SPEED: 225 IPM
BED AREA: 120" LR X 36" FB
RAM AREA: 120" LR X 36" FB
MOTOR: 30 HP
OAD: 150" T X 176" LR X 52" FB
APPROX WEIGHT: 50,000 LBS
EQUIPPED WITH:
LIGHT CURTAINS
PLC CONTROL
TEMPORARY SPECIFICATION SUBJECT TO REVISIONS.
PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED.
