Details

  • Year:1983
  • Stock #:13108J
  • Model:B-100H
  • Status:

Specification

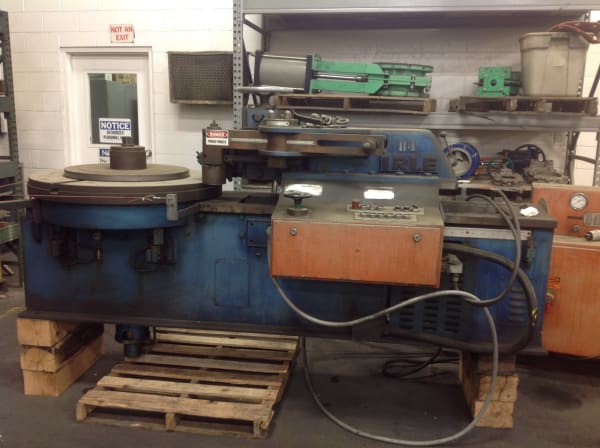

IRLE MODEL B-100H RIM/RING FORMER, STOCK# 13108J
Minimum I.D.: 8"
O.D. Range: 17" 26" & 40"
Maximum O.D. with 3-Roller Bending: No Limit
Face Plate Rotations: 2/3/5 RPM
CAPACITIES:
Flat on Flat: 1-3/4" x 1/2" to 8" Min. Dia.
2-3/8" x 5/8" to 20" Min.Dia.
2-3/4" x 3/4" to 40" Min. Dia.
3-1/4" x 3/4" to 60" Min. Dia.
Angles Leg Out: 3" x 3" x 3/8" to 40" Min. Dia.
3-1/2" x 3-1/2" x 5/16" to 60" Min. Dia
Angles Leg In: 2-3/8" x 2-3/8" x 1/4" to 40" Min. Dia.
3" x 3" x 5/16" to 60" Min. Dia.
Bar: 2-1/8" to 40" Min. Dia.
Flats on Edge: 7/8" x 4" to 40" Min. Dia.
Channels In: 3-1/2" to 40" Min. Dia.
Channels Out: 3-1/2" to 40" Min. Dia.
Tees/In: 3" to 40" Min. Dia.
Tees/Out: 3-1/2" to 40 Min. Dia.
EQUIPPED WITH:
Adjustable Support Rolls
Hydraulic Power Unit
Electrical Control System
Approximate Overall Dimensions: 140" L-R x 60" F-B x 60" H
Approximate Weight: 10,000 Lbs.
Serial Number: 1297

* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
