Presses (Stamping) /
Stock # 13014J
Details
- Year:
- Stock #:13014J
- Model:
- Status:
Specification

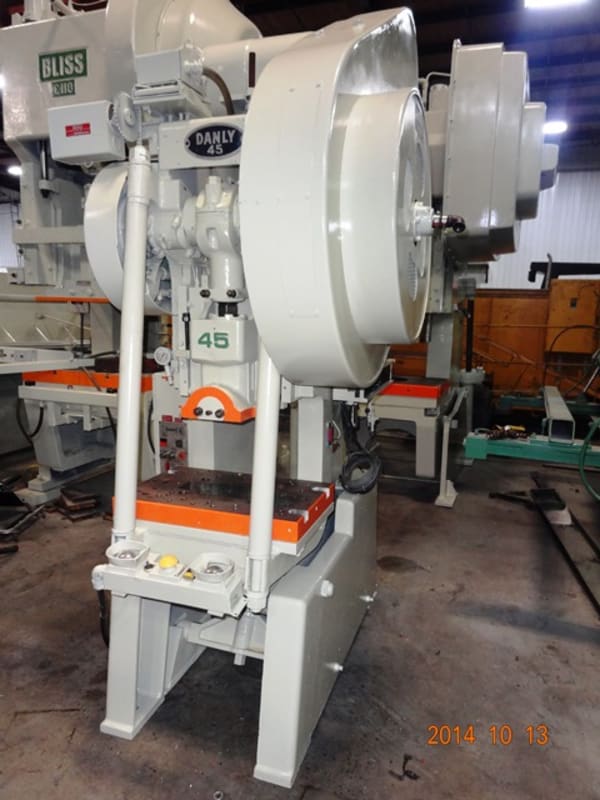

45 TON DANLY OBI PRESS, STOCK# 13014J
CAPACITY 49 TON
STROKE 3"
SHUT HEIGHT (OVER BOLSTER)11 1/2"
RAM ADJ. 2 1/2"
SPEED 90-120 SPM
RAM AREA 9"LR X 11.81" FB
BED AREA 28"LR X 18" FB
MOTOR 7 1/2 HP
OAD 7' L X 6' W X 102" T
APPROX WEIGHT 8,200 LBS
EQUIPPED WITH:
FLYWHEEL DESIGN
AIR CLUTCH & BRAKE
KNOCK OUT SLOTS
V/S MOTOR & CONTROLS
FLYWHEEL DESIGN
TEMPORARY SPECIFICATION SUBJECT TO REVISIONS.
PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED.
LOCATION: COLUMBIA, TN
CALL FOR PRICING
CAPACITY 49 TON
STROKE 3"
SHUT HEIGHT (OVER BOLSTER)11 1/2"
RAM ADJ. 2 1/2"
SPEED 90-120 SPM
RAM AREA 9"LR X 11.81" FB
BED AREA 28"LR X 18" FB
MOTOR 7 1/2 HP
OAD 7' L X 6' W X 102" T
APPROX WEIGHT 8,200 LBS
EQUIPPED WITH:
FLYWHEEL DESIGN
AIR CLUTCH & BRAKE
KNOCK OUT SLOTS
V/S MOTOR & CONTROLS
FLYWHEEL DESIGN
TEMPORARY SPECIFICATION SUBJECT TO REVISIONS.
PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED.
LOCATION: COLUMBIA, TN
CALL FOR PRICING
