Details

  • Year:
  • Stock #:13827J
  • Model:SEE DESCRIPTION
  • Status:

Specification

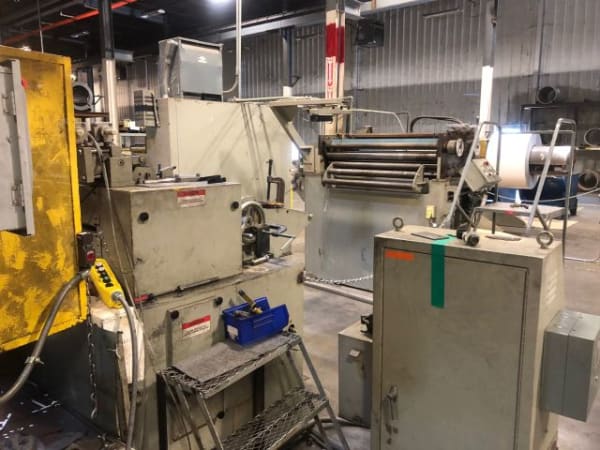

50" WIDE X .050 X 20,000 LB COE/SESCO SERVO FEED LINE, STOCK# 13827J

54” Wide x .060 Coe AC Servo Drive Digital Roll Feed
Model No. CPRF 454
Age:  1997
S/N:  16502
Capacity:  .060 at 54 Inches Width
                  .156 at 30 Inches Width
Feed Angle:  180 And 240 Degrees
Maximum Speed:   348 Feet/Minute
Acceleration:     32 Feet/Second/Second
Feed Accuracy:  +/-.003 Inch
Feed Roll O.D.:   4 Inches
Drive Ratio:   3.0: 1
Close tolerance cluster geared upper and lower feed rolls
Air operated pilot release mechanism
Upper roll pivots over the diameter of the mating gear, guaranteeing full gear mesh regardless of upper roll position
Splined gears and rollers for a lifetime of accurate performance
Regulators for feed roll, raise and lower cylinders
Crodon coated upper and lower feed rolls
AC brushless servo drive
Motor shaft encoder
Master control station
220 volt, 3 phase
Jog forward and reverse
Single cycle pushbutton
Emergency stop button
Electrical safety disconnect
Motorized passline height adjustment
3 roll entrance catenary support section full sideplate with funnel
Air operated anti-backup rolls
C.P.E.C Controller - BG-2
Key pad length and speed input
160 character backlit LCD display
Alpha-numeric control parameter diagnostics
200 job memory (alpha-numeric, 8 digit)
Adjustable acceleration and deceleration rates
Footage meter
Programmable dwell for pilot release
Batch counter
Entrance edge guide with self centering and independent handcrank adjustment
with 2 1/4 diameter rolls
Special Options:
Remote jog with coil cord mounted on operator side of feed base, connected to existing j-box--customer to supply 4-button pendant (forward/reverse and upper roll raise/lower)
Heavy duty cabinet base w/passline adjustable +-5" by means of 10,000 lbs leg jacks
Feed Direction: Left to Right
Passline Height: 55”

Sesco 7 Roll Powered Straightener
S/N:  21166
Model:  53-264
Age:  1985
Capacity:  .015-.040
Feed Length Range:  0-42"
Feed Length Accuracy:  +/- .005
Feed Direction:  L - R
Pass liine Height:  56"
Pinch Roll Dia:  3.5"
Straightening Roll Dia"  3.5"
Pinch Roll Lift:  Pneumatic
Driven Pinch Rolls and Lower Straightening Rolls
Sonar Loop Control
Manual Lube
220/440 Volt

20,000# Sesco Traversing Pull Off Type  Centering Reel W/Power Threading Drive
60" OD
20"-24" ID
Hydraulic Expansion
Coil Lift Elevator
