Request a Quote
Material Handling Items /
Stock # 10922T
Details
- Year:1975
- Stock #:10922T
- Model:
- Status:
Specification

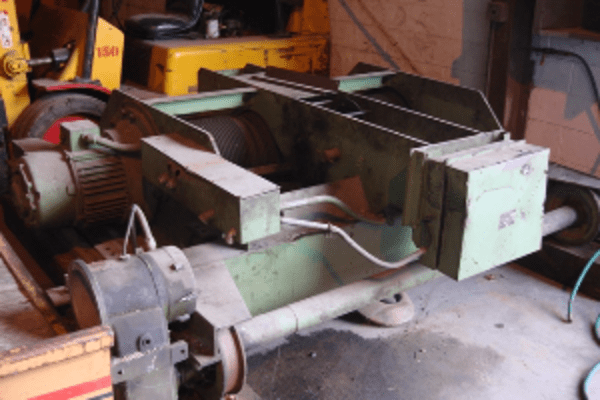

20 Ton P&H, 27'8" Span, 30' Lift, Top Running
Stk# 10922T S/N CH24943 Year: 1975
CAPACITY: 20 TON
SPAN: 27' 8"
RAIL & RUNWAY: 360'
HEADROOM: 52" APPROX.
LIFT MAIN HOIST: 30'
BRIDGE: 180 FPM 7.5 HP
TROLLEY: 125 FPM 4 HP
HOIST: 20 FPM
EQUIPPED WITH:
PENDANT
AC MAGNETIC CONTROL
5 STEP V-SPEED
CENTER DRIVE
SPREAD 7'
TOP RUNNING
DOUBLE GIRDER I-BEAM CONST.
BRIDGE WHEEL DIA. 15"
TROLLEY WHEEL DIA. 12"
TEMPORARY SPECIFICATION SUBJECT TO REVISIONS.
PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED
Stk# 10922T S/N CH24943 Year: 1975
CAPACITY: 20 TON
SPAN: 27' 8"
RAIL & RUNWAY: 360'
HEADROOM: 52" APPROX.
LIFT MAIN HOIST: 30'
BRIDGE: 180 FPM 7.5 HP
TROLLEY: 125 FPM 4 HP
HOIST: 20 FPM
EQUIPPED WITH:
PENDANT
AC MAGNETIC CONTROL
5 STEP V-SPEED
CENTER DRIVE
SPREAD 7'
TOP RUNNING
DOUBLE GIRDER I-BEAM CONST.
BRIDGE WHEEL DIA. 15"
TROLLEY WHEEL DIA. 12"
TEMPORARY SPECIFICATION SUBJECT TO REVISIONS.
PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED
