Presses (Stamping) /
Stock # 12420J
Details
- Year:1975
- Stock #:12420J
- Model:E2-150-48-36
- Status:
Specification

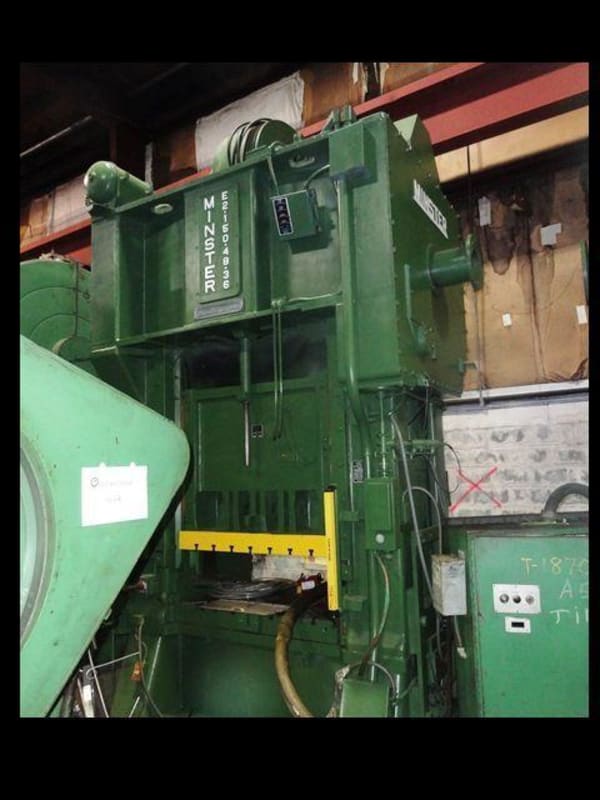

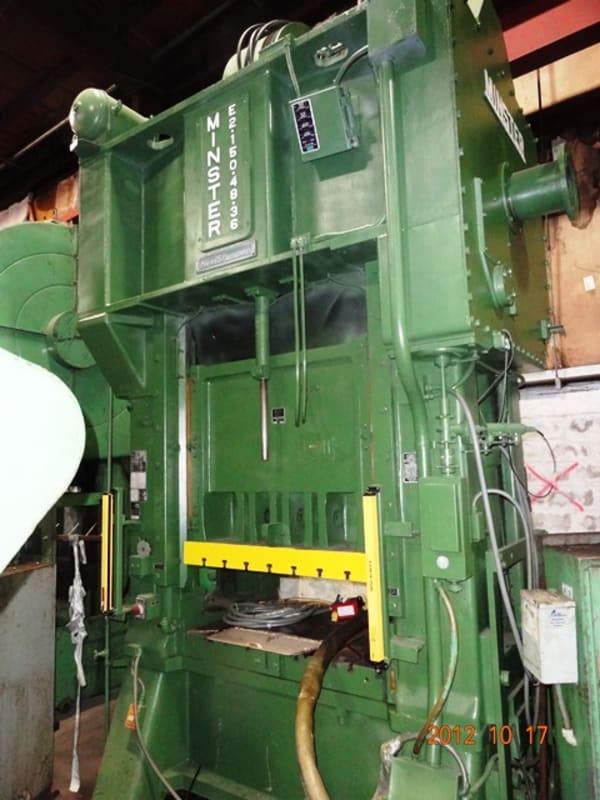

150 Ton Minster SSDC Press
Stk# 12420J Model# E2-150-48-36 S/N 21855 Year: 1975
CAPACITY: 150 TON
STROKE: 8"
RAM ADJUSTMENT: 8"
SHUT HEIGHT: 22-1/2"
BED AREA: 48" L-R X 36" F-B
SLIDE AREA: 48" L-R X 36 " F-B T-SLOTTED
SPEED: 10 - 60 SPM
O.A.D.: 74" L-R X 102" F-B X 178" T
APPROX WEIGHT: 47,000 LBS
EQUIPPED WITH:
AIR CLUTCH & BRAKE
AIR COUNTERBALANCES
VIBRATION PADS
RECIRCULATING LUBE
5-1/4" T-SLOTTED BOLSTER
TOTAL CLEARANCE .026"
REBUILT COUNTERBALANCES
TEMPORARY SPECIFICATION SUBJECT TO REVISIONS.
PHYSICAL INSPECTION TO VERIFY SPECIFICATIONS IS RECOMMENDED.
