Details

  • Year:2002
  • Stock #:13484J
  • Model:H15-20M
  • Status:

Specification

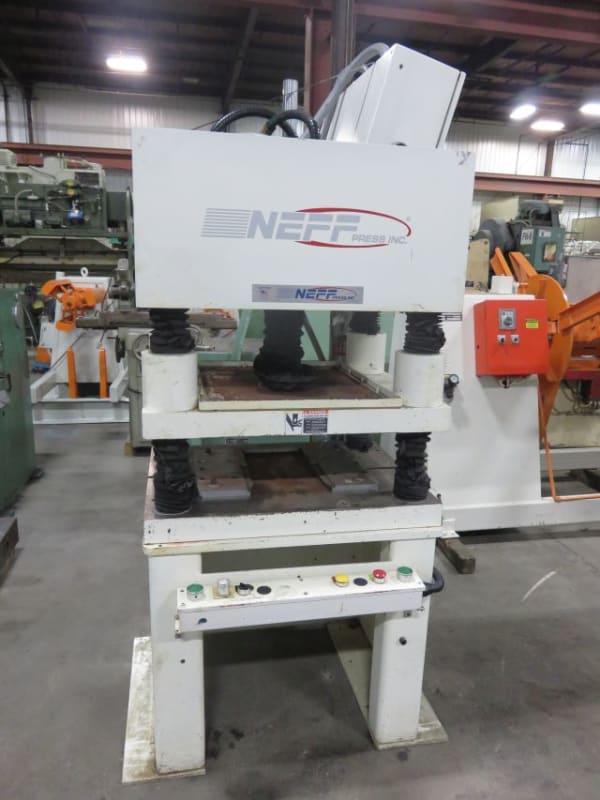

15 TON NEFF 4-POST HYDRAULIC PRESS, STOCK# 13484J

STK:  13484J

S/N:  11728

AGE:  2002

MODEL:  H15-20M

TONNAGE:  15.2 @ 3000 psi

STROKE:  8"

DAYLIGHT:  12"

DIE AREA:  28" x 20"

RAM SPEEDS:

      Rapid Advance-978 IPM

      Pressing-241 IPM

      Return-320 IPM

WORK HEIGHT:  36.4"

CYLINDER DIAMETER:  4.0"

TONNAGE:  15.2 @ 3000 psi

VOLTAGE:   460 volts A.C. 3

MAXIMUM OPERATING PRESSURE:     3000 psi

RESERVOIR CAPACITY:  60 U.S. Gallons

RECOMMENDED OIL:   111 s.u.s. (23 cSt) Use antiwear industrial hydraulic oils or automotive crankcase oils having letter designations (SC, SD, SE or SF) with viscosity grades of 32 to 68 cSt at                                             104 DEG. F (40 DEG. C)
